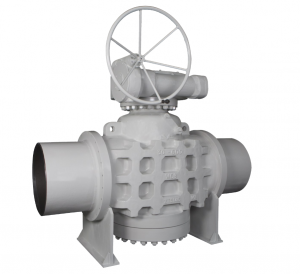

Plug Valves are available from the EDMUND VALVE COMPANY.

Manufactured in cast or forged materials we can deliver engineered assemblies within the shortest achievable lead time. We can manufacture bespoke designs to suit specific applications and customer requirements, based on our extensive experience and working with our clients to a mutual goal is our aim on every project.

  • Lubricated Plug Valve
  • Non Lubricated Plug Valve
  • 3 and 4 way Multi Port Plug Valve
  • Eccentric Plug Valve
  • Expanding Plug Valve

The above designs of plug valves, are our key range, thereafter special designs are assessed and made on a project by project basis including PTFE/PFA lined plug valves. Standard sizes are available are from 1/2” – 42”, class ratings covered are ANSI class 150 through 600 as standard plus other sizes and ratings are available on request. Flanged raised face, ring type joint, butt weld and screwed end connections are available, designed to ANSI B16.34.

Plug Valve materials include: A105; A216 WCB/WCC carbon steel; A350 LF2; A352 LCC/LCB low temperature carbon steel; 316 & 304 stainless steel; duplex stainless steel, super duplex stainless steel; chrome-moly alloy steels; 254 SMO; aluminium bronze; high nickel alloys; inconel; hastelloy; titanium.

Plug Valve Bonnet : Standard up to 400 deg.C.  Normalising between 400 to 550 and -20 to -100 deg.C.  Cryogenic -100 to -276 deg. C.

Plug Valve Trim material includes: stainless steel, duplex stainless steel, 13% chrome, monel, stellite, tungsten carbide, advanced ceramics and hastelloy B & C

Plug Valve flow characteristics: Round, Rectangular, Venturi ports for flow control, design API 6D and special characteristics on request.

Plug valves are fitted with suitably sized actuation, including pneumatic, manual, electric or hydraulic types.  Pneumatic actuators are either diaphragm or piston type depending on valve force/ size. Accessories such as airsets, positioners, solenoid valves, positon feedback devices and limit switches are included as per specification requirements.

Non-destructive testing (magnetic particle inspection, positive material identification, radiography & dye-penetrant). No job is too small or too large, whether it is one valve, small project and shut down requirements or stock replenishment Edmund Valve Company can fulfil the contract technically and commercially.

EDMUND VALVE COMPANY manufacture Plug Valves for stock and short delivery times. With our capability and flexibility we can produce valve packages to meet the needs of today’s market place. We recognise the requirement globally for high quality valves in special materials and our expertise in exporting along with the manufacturer’s commitment to quality ensure the client is completely satisfied.

EDMUND VALVE COMPANY operate a quality Management system accredited to ISO 9001, this with fully traceable certification according to BS EN 10204 3.1 underlines our commitment to supplying quality valves. The management team place huge emphasis on employing high quality staff who are motivated through the company’s quality policy to ensure our clients’ requirements are met on every project. Only through using the skills of the design team and the worldwide production facilities are we able to meet our clients’ exacting demands and ensure compliance with their purchase order. All valves supplied for onshore and offshore applications are designed and manufactured in accordance with the main applicable standards and specifications. All plug valves provided undergo full inspection, hydro, seat leakage and final function testing to the applicable related standards prior to shipment.
