• Sizes: 1/2″ – 48″
  • Class Ratings: 150 – 2500
  • End Connections: RF, FF, SW, BW, NPT, RTJ
  • Bypass and Actuation options available
  • Gear Operators fitted as standard at certain sizes
  • Special sizes and ratings available on request

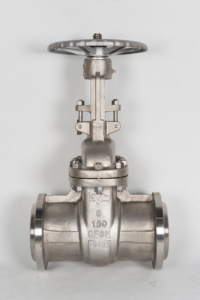

Cast Steel Gate Valves

Cast Steel Gate valves from EDMUND VALVE COMPANY. Edmund Valve Company are specialists in manufacturing quality cast steel gate valves. Available in sizes from 1/2″ – 48″ and class ratings 150 through 2500. Our cast steel gate valves can be made in Raised Face (RF) and Ring Type Joint (RTJ) to specification ANSI B16.5 and Butt Weld (BW) to specification ANSI B16.25. Other end connections are available on request.

Edmund Valve Company Cast Steel Gate Valves are manufactured according to API 600 / 602. Our range are tested vigorously to API 598 and design standard ANSI B16.34. All our products are supplied with EN10204 3.1 Test Certification. Further testing is available on customer request such as; radiography testing and Non-destructive Testing (NDT).

All our gate valves are available with a variety of trim materials according to the API table. We are able to customise valves with bypass systems, actuation (pneumatic, hydraulic and electric). Gear operators are fitted as standard at certain sizes / pressure classes.

Common Construction Materials

  • A216 WCB/WCC
  • A351 CF8M / CF8C / CF8
  • A352 LCC/LCB

Exotic Materials

We also offer Cast Steel Gate Valves in a large selection of exotic materials including; Chrome Moly Alloy,  Duplex, Aluminium Bronze, Monel, Inconel and Titanium.
To find out more about our selection of materials visit our Exotic Materials page here.

Typical drawings are available on the download option below.
