Features

  • Gate, Globe, Piston Check and Swing Check valve designs
  • Sizes: 1/2″ – 2″
  • Class Ratings: 800 – 2500
  • End Connections: RF, FF, SW, BW, RTJ, NPT
  • Special sizes and ratings available on request

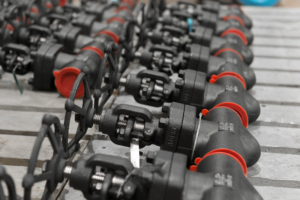

Forged Valves

Forged Valves are available from EDMUND VALVE COMPANY. Edmund Valve Company are specialists in manufacturing quality Forged Gate, Globe, Piston Check and Swing Check valves. Available in sizes from 1/2″ – 2″ and class ratings 150 through 2500. Our forged valves can be made in Raised Face (RF) and Ring Type Joint (RTJ) to specification ANSI B16.5 and Socket Weld (SW), Butt Weld (BW) and Threaded to specification ANSI B16.25. Other end connections are available on request.

Edmund Valve Company Forged Valves are manufactured according to API 602. Our range is tested vigorously to API 598 and design standard ANSI B16.34. All of our products are supplied with EN10204 3.1 Test Certification. Further testing is available on customer request such as; radiography testing and Non-destructive Testing (NDT).

All our forged valves are available with a variety of trim materials according to the API table.

Common Construction Materials

  • A105
  • A350 LF2
  • 316 / 304 Stainless Steel

Exotic Materials

We also offer Forged Valves in a large selection of exotic materials including; Chrome Moly Alloy,  Duplex, Aluminium Bronze, Monel, Inconel and Titanium.
To find out more about our selection of materials visit our Exotic Materials page here.
